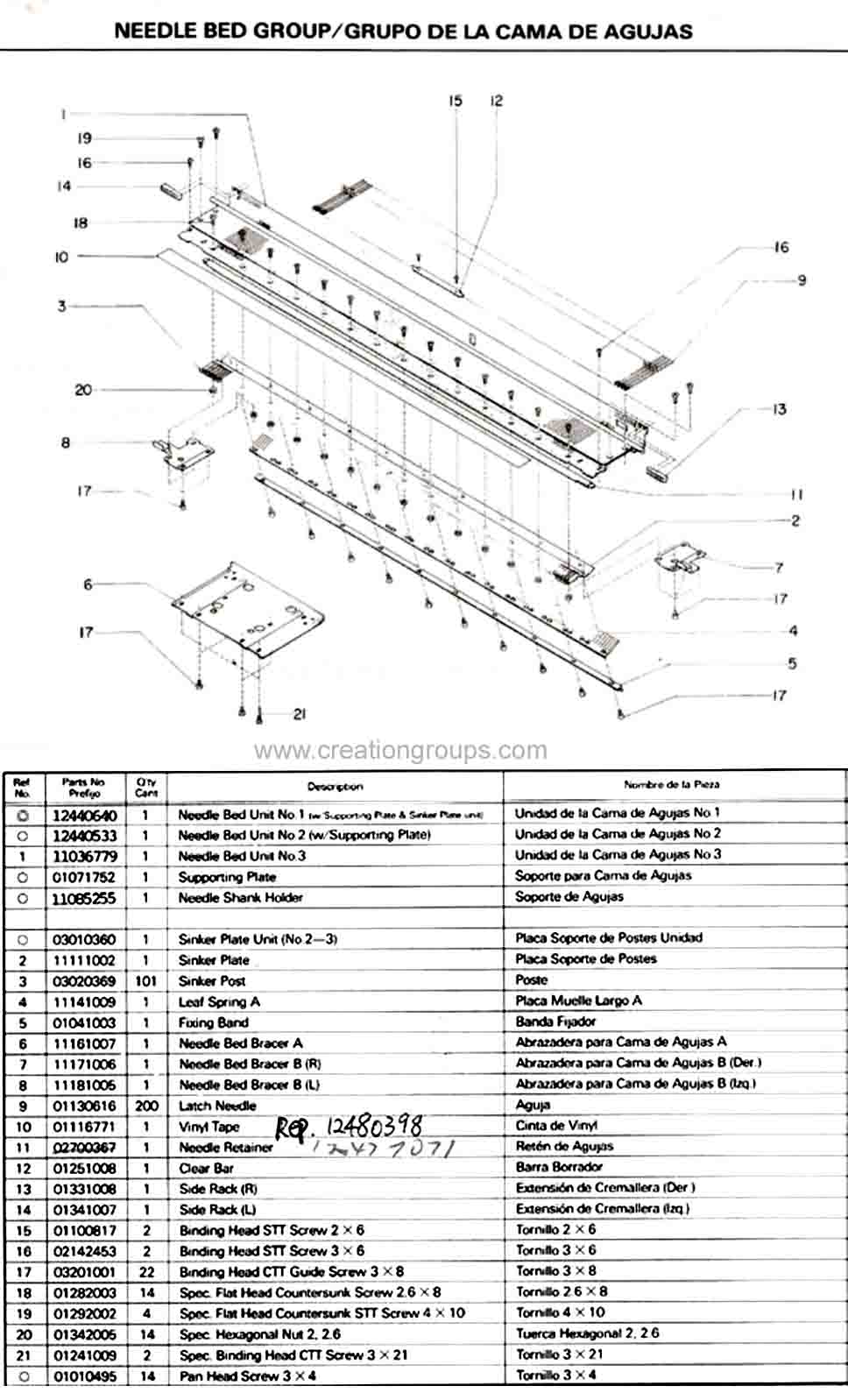

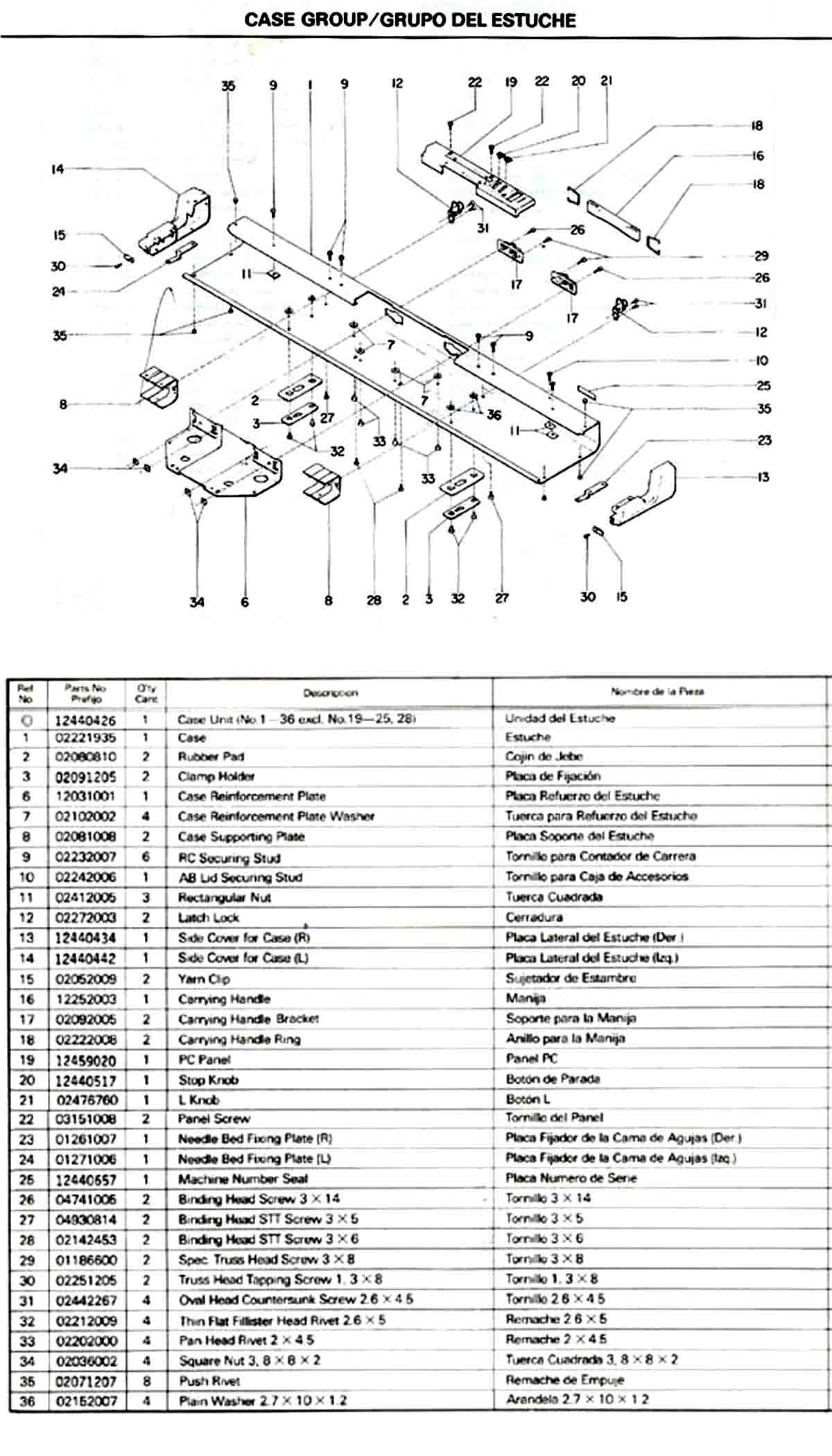

SK-280.1.01 Needle Bed Group /SK-280.1.02 Pattern Group /SK-280.1.03 Case Group /SK-280.1.04 Top Cover Group /SK-280.1.05 Carriage Group A/SK-280.1.06 Carriage Group B/SK-280.1.07 Carriage Group C/SK-280.1.08 Carriage Group D/SK-280.1.09 Arm Group/SK-280.1.10 Tension Group /SK-280.1.11 Accessories Group =(Creative JBZ/L245-2 4.5mm Sandard Gauge Punchcard Knitting Machine)   Intarsia Carriage AG-10

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SRP-60N:

SRP-60N.1.01 Accessories Group/SRP-60N.1.02 Arm Group/SRP-60N.1.03 Carriage Group A/SRP-60N.1.04 Carriage Group B/SRP-60N.1.05 Needle Bed Group A/SRP-60N.1.06 Needle Bed Group B =(Creative JBZ/L245-2 4.5mm Standard Gauge Punchcard Knitting Machine Ribber)

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SRP-60:

SRP-60.1.01 Needle Bed Group A/SRP-60.1.02 Needle Bed Group B/SRP-60.1.03 Carriage Group A/SRP-60.1.04 Carriage Group B/SRP-60.1.05 Arm Group /SRP-60.1.06 Accessories Group

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SRJ-70:

SRJ-70.1.01 Needle Bed Group A/SRJ-70.1.02 Needle Bed Group B/SRJ-70.1.03 Carriage Group A/SRJ-70.1.04 Carriage Group B/SRJ-70.1.05 Arm Group /SRJ-70.1.06 Accessories Group =(Creative JBZ/L245-2 4.5mm Punchcard Knitting Machine Birdseye Carriage)

RJ-1 Birdseye Carriage for  SK280/SRJ-70 Silver Reed Knitting Machine  Carriage A/RJ-1 Birdseye Carriage for  SK280/SRJ-70 Silver Reed Knitting Machine  Carriage B

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SK840:

SK-840.1.01 Needle Bed Group /SK-840.1.02 Case and Panel Group /SK-840.1.03 Top Cover Group /SK-840.1.04 C Board Group /SK-840.1.05 K Carriage Group A/SK-840.1.06 K Carriage Group B/SK-840.1.07 K Carriage Group C/SK-840.1.08 K Carriage Group D/SK-840.1.09 Arm Group/SK-840.1.10 Tension Group /SK-840.1.11 Accessories Group (Creative DBZ/L245-1 4.5mm Computerized Knitting Machine)

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SK155:

SK-155.1.01 Needle Bed Group /SK-155.1.02 Pattern Group /SK-155.1.03 Case Group /SK-155.1.04 Top Cover Group /SK-155.1.05 Carriage Group A/SK-155.1.06 Carriage Group B/SK-155.1.07 Carriage Group C/SK-155.1.08 Carriage Group D/SK-155.1.09 Arm Group/SK-155.1.10 Tension Group /SK-155.1.11 Accessories Group (Creative/Brother KH260/KR230 9mm Bulky Gauge Punchcard Knitting Machine)

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SK150:

SK-150.1.01 Needle Bed Group /SK-150.1.02 Case Group /SK-150.1.03 Top Cover Group /SK-150.1.04 Carriage Group A/SK-150.1.05 Carriage Group B/SK-150.1.06 Tension Group/SK-150.1.07 Accessories Group

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SK160:

SK-160.1.01 Needle Bed Group /SK-160.1.02 Case Group /SK-160.1.03 Top Cover Group /SK-160.1.04 Carriage Group A/SK-160.1.05 Carriage Group B/SK-160.1.06 Arm Group /SK-160.1.07 Tension Group /SK-160.1.08 Accessories Group (Creative CG170/GE63-70D 7mm Mid Gauge Manual Type Knitting Machine)

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List LK150:

LK-150.1.01 Needle Bed Group /LK-150.1.02 Carriage Group A/LK-150.1.03 Carriage Group B/LK-150.1.04 Tension Group/LK-150.1.05 Accessories Group

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SK860:

SK-860.1.01 Needle Bed Group /SK-860.1.02 Case and Panel Group /SK-860.1.03 Top Cover Group /SK-860.1.04 C Board Group /SK-860.1.05 Carriage Group A/SK-860.1.06 Carriage Group B/SK-860.1.07 Carriage Group C/SK-860.1.08 Carriage Group D/SK-860.1.09 Arm Group/SK-860.1.10 Tension Group /SK-860.1.11 Accessories Group (Creative CG170/GE63-70D 7mm Mid Gauge Manual Type Knitting Machine without Elec.)

Silver Reed Knitting Machine/Singer/Knitmaster/Studio/Creative Knitting Machine Parts & Accessories Diagram List SR860:

SR-860.1.01 Needle Bed Group A /SR-860.1.02 Needle Bed Group B / SR-860.1.03 Carriage Group A /SR-860.1.04 Carriage Group B /SR-860.1.05 Arm Group /SR-860.1.06 Accessories Group (Creative CG170/GE63-70D 7mm Mid Gauge Manual Type Knitting Machine without Elec.)

Brother Knitting Machine/Empisal/Creative Knitting Machine Parts & Accessories Diagram List KH860 KH868 KH890:

KH860 Parts For Carriage A/KH860 Parts For Carriage B/KH860 Parts For Needle Bed/KH860 Needle Selector Unit /KH860 Parts For Carrying Case/KH860 Parts For Accessories/KH860 Parts For Carriage/KH860 Parts For L-Carriage =( Creative/Brother KH860/KR830 4.5mm Sandard Gauge Punchcard Knitting Machine)

KH868 Parts For Carriage A Upper Part/KH868  Parts For Carriage A Lower Part/KH868  Parts For Carriage B Upper Part/KH868 Parts For Carriage B Lower Part/KH868 Parts For Needle Bed /KH868 Parts For Needle Selector Unit /KH868 Parts For Carrying Case/KH868 Parts For Accessories

KH894 Parts For Carriage Upper Part /KH894 Parts For Carriage Lower Part

Brother Knitting Machine/Empisal/Creative Knitting Machine Parts & Accessories Diagram List KH830 KR830 KR838 KR850:

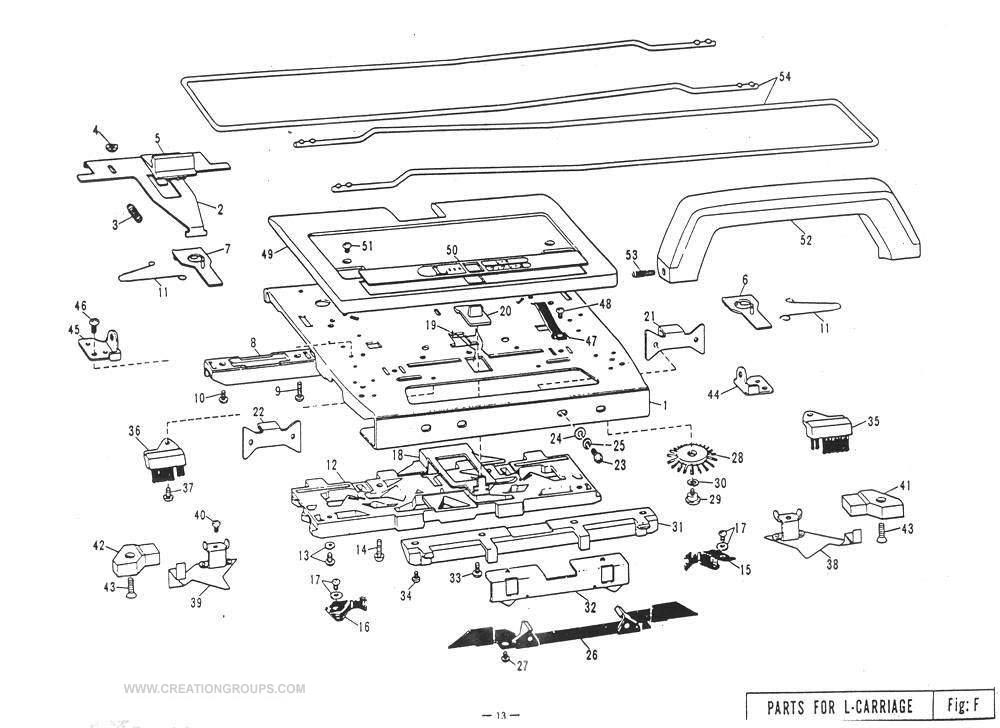

KH830 Parts For Carriage A/KH830 Parts For Carriage B/KH830 Parts For Needle Bed/KH830 Needle Selector Unit/KH830 Parts For Carrying Case/KH830 Parts For Accessories/KH830 Parts For L-Carriage

KR850 Parts Diagram For Carriage / KR850 Parts Diagram For Arm Group / KR850 Parts Diagram For Needle Bed Group

Brother Knitting Machine/Empisal/Creative Knitting Machine Parts & Accessories Diagram List KH260 KR260 KH230 KR230:

KH230 Parts For Carriage /KH230 Parts For Needle Bed /KH230 Parts For Accessories

KH260 Parts For Carriage A /KH260 Parts For Carriage B /KH260 Parts For Needle Bed /KH260 Needle Selector Unit /KH260 Parts For Carrying Case /KH260 Parts For Accessories

Brother Knitting Machine/Empisal/Creative Knitting Machine Parts & Accessories Diagram List KH970 KH910 KR900 KR710:

KH970 Parts For Carriage Sinker Plate/KH970 Parts For Needle Bed/KH970 Needle Selector Unit/KH970 Parts For Carrying Case/KH970 Parts For Accessories/KH970 Parts For L-Carriage/KH970 Parts For Control Box/KH970 Parts For Carriage Upper Part/KH970 Parts For Carriage Lower Part

Brother /Empisal Knitting Machine Combination of Main Knitter ,Ribber (Ribbing Attachment) & Accessories Chart

Instruction Books, Manuals,Elec. Manuals for Brother Knitting Machines , Parts & Accessories



Silver Reed/Singer/Studio/Knitmaster/Creative Knitting Machines Combination of Main Knitter ,Ribber (Ribbing Attachment) & Accessories Chart



Brands Chart of Silver Reed/Singer/Studio/Knitmaser/Toyota/Juki/Creative/Brother/Knitking/Empisal/Passap/Knitting Machines & Colour Changers



How to use Brother Knitting Machine & Parts ( Training and Experiences) : Brother Standard Gauge Brother Knitting Machine Main Knitter (Knitmaster) :KH830, KH836, KH840, KH860, KH890, KH881, KH891, KH864, KH869, KH910, KH900, KH940,KH950, KH950i, KH965, KH965i & KH970

How to use Brother Knitting Machine & Parts (Brother Knitting Machine & Parts Training and Experiences) : Brother Knitting Machine Ribbers KR830 & KR850

How to use Brother Knitting Machine & Parts (Brother Knitting Machine & Parts Training and Experiences) : Brother Bulky Gauge Knitting Machine Main Knitter KH260 / KH270 & Creative KH260 Bulky Gauge Knitting Machine

How to use Brother Knitting Machine & Parts (Brother Knitting Machine & Parts Training and Experiences) : Brother Bulky Gauge Knitting Machine Ribber KR260

How to use Brother Knitting Machine & Parts (Brother Knitting Machine & Parts Training and Experiences) : Brother Bulky Gauge Knitting Machine KH230Chunky Main Kniter & KR230 Ribber. & Creative KH260 Bulky Gauge Knitting Machine

How to use Brother Knitting Machine & Parts (Brother Knitting Machine & Parts Training and Experiences) : Creative CG170 7mm Mid Gauge Knitting Machine Main Kniter & Ribber.

How to use Silver Reed Knitting Machine & Parts (Silver Reed Knitting Machine & Parts Training and Experiences) : Silver Reed Standard Gauge Knitting Machine Main Knitter: SK280-840, 210-700 & Creative JBZ/L 245-2 Standard Gauge Knitting Machine

How to use Silver Reed Knitting Machine & Parts ( Silver Reed Knitting Machine & Parts Training and Experiences): Standard Gauge Silver Reed Knitting Machine SRP20-SRP60N



How to use Singer Knitting Machine & Parts (Singer Knitting Machine & Parts Training and Experiences)

How to use Studio Knitting Machine & Parts (Studio Knitting Machine & Parts Training and Experiences)

How to use Passap Knitting Machine & Parts (Passap Knitting Machine & Parts Training and Experiences)

How does the knitting machine form a stitch?

How do I figure the gauge?

1) Start with contrast yarn of same yarn you will be using in the garment.
2) Cast On 60 stitches (L30 - R30).
3) Knit 8 rows in stockinette.
4) Make eyelets on left side for whole number of tension used and eyelets on the right side for points used.
For example: My tension dial is at 5.1 so I make five eyelets on the left side and 1 eyelet on the right side.
5) Knit 2 rows.
6) Take the contrast yarn out of the yarn feeder and put in the yarn you will be using in the garment.
7) Set the knitting machine for the pattern (tuck, slip, fair-isle, lace, etc) you will be using in the garment.
8) Take the stitch off of needle L21 and put it on either L20 or L22.
9) Push the needle back to A position.
10) Take the stitch off of needle R21 and put it on either R20 or R22.
11) Push the needle back to A position.
12) Knit 40 rows.
13) Take the yarn out of the yarn feeder and put in the contrast yarn.
14) Bring L21 into B position. You can put the bar of the stitch on L22 onto L21.
15) Bring R21 into B position. You can put the bar of the stitch on L22 onto L21.
16) Knit 10 rows and bind off.
17) Block the swatch like you plan on blocking the garment.
18) Measure the 40 stitches between the needles left in A (out of work) position. (These will be noticed on the swatch as the unknit stitch on both sides.)
19) Measure the 40 rows between the contrast yarns.
Your swatch will be 40 stitches by 40 rows. Take 3 different measurements for both stitches and rows. Use the average for each.
Example: You measure the 40 stitches and get 3.75 inches, 4 inches and 4.25 inches. Your average is 4 inches. If you measure the stitches and get 3.75, 4 and 3.75 use 3.75.



How To Figure Gauge?



When determining the gauge of your swatch, use the same factor as the written pattern. For example:

Stitches/rows to 1” = 4.5 sts x 6 rows
Stitches/rows to 4” = 18 sts x 24 rows
Stitches/rows to 1 centimeter = 4.5 sts x 6 rows
Stitches/rows to 10 centimeter = 18 sts x 24 rows

Use a hand held calculator or your cell phone calculator to calculate the Stitch Converter and the Row Converter measurements. Use up to 2 decimal points.

Stitch Converter

Take your stitch gauge and divide it by the pattern stitch gauge and the answer is the Stitch
Converter. For example:
Your swatch measures 29.5 stitches for 4 inches. The pattern gauge is 28 stitches for 4 inches. Divide swatch (29.5) by pattern (28) and the answer (stitch converter) is 1.0535.Round to 1.05.

How to use the Stitch Converter

If the pattern calls for 140 stitches, multiply the number of stitches (140) by the Stitch Converter answer (1.05) to get the number of stitches needed (147). If the pattern uses an even number of stitches add a stitch (148). Cast on the number of stitches needed.

Row Converter

Take your row gauge and divide it by the pattern row gauge and the answer is the Row Converter.
For example:
Your swatch measures 13.5 rows for 4 inches. The pattern row gauge is 12 rows for 4 inches. Divide swatch (13.5) by pattern (12) and the answer (row converter) is 1.1250. Round to 1.13.

How to use the Row Converter

If the pattern calls for 300 rows, multiply the number of rows (300) by the Row Converter answer (1.13) to get the number of rows needed (339). If the pattern uses an even number of rows add a row (340). Knit the number of rows needed.







E-wrap Cast-on

Double E-wrap Cast On

This is the method most commonly used when setting up to use the garter carriage.

DOUBLE E-WRAP CAST ON

Bring required needles to E position on Brother or Knitking machines or to D position on Silver Reed or Studio machines..

Begin at LEFT edge. Make a slip knot and place it onto the 1st needle.

Now take the yarn UNDER the 1st and 2nd needles.

Bring the yarn up between the 2nd and 3rd needles.

Lay the yarn over the TOP of both needles. (needles 1 and 2)

Place the yarn in the HOOK of the 1st needle and with thumb and push it to the B
position. You have manually knit off the 1st stitch.

Now, there should be a loop on the 2nd needle.

Now bring the yarn UNDER the 2nd and 3rd needles.

Bring the yarn UP between the 3rd and 4th needle.

Lay the yarn across the 2nd and 3rd needles.

Place the yarn into the HOOK of the 2nd needle. Manually knit off this 2nd needle.

Repeat this across the bed moving from left to right until all needles including the last needle are manually knitted off. The last needle just lay the yarn in the hook and knit it back.

Place the yarn into the yarn feeder on the carriage.



Bind Off (Casting-Off)

Increasing Stitches

Decreasing Stitches

Short Rowing

Pick Up Dropped Stitches

How To Use Transfer Tool?

Transferring from Machine to Hand Needles

Button Holes Small, Medium, Large and Vertical


Create a Hanging Hem

Creating a Picot Hem

Double Rib or Continental Hem or Elastic Hem

Shaping a Vee Neck

Shaping a Round or Square Neck

Rib without a Ribber
